Peugeot Speedfight - Workshop Manual > Changing the engine oil

  The engine must be drained when it is warm to allow the oil to run easier.

Put on protective gloves.

• Place the vehicle on its central stand on flat ground.

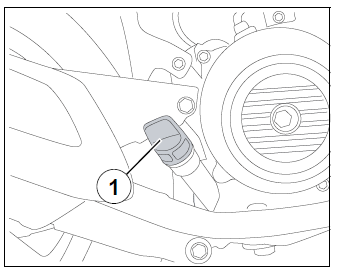

• Remove the engine's oil filler cap (1).

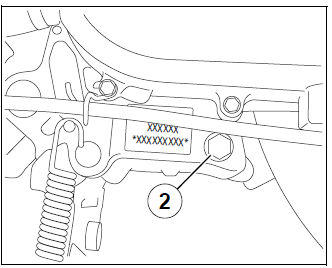

• Remove the drainage cap and its seal (2) and allow the oil to drip into a recipient.

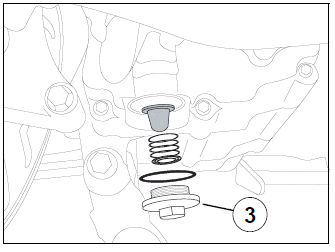

• Remove the strainer cap (3) and clean the strainer.
• Re-install the filter cap fitted with a new seal.

Tightening torque: 15 Nm.

• Insert the drain plug fitted with a new seal.

Tightening torque: 20 Nm.

• Pour the required quantity of oil corresponding to the manufacturer's standards into the filler hole.

Quantity: 0.7 l.

• Start the engine and let it run for a short while.

• Remove the engine's oil filler cap/gauge.
• Wipe dry the filler cap/gauge and fit it back but do not screw it into the filler hole.
• Remove the filler cap/gauge and check the oil level.

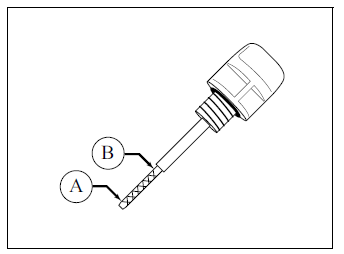

• The oil level shall not be between the minimum (A) and maximum (B) level marks without exceeding the latter.
• Add oil if necessary.

Draining the relay box

The gearbox must be drained when the engine is warm so that the oil will run easier.

Put on protective gloves.

• Place the vehicle on its central stand on flat ground.

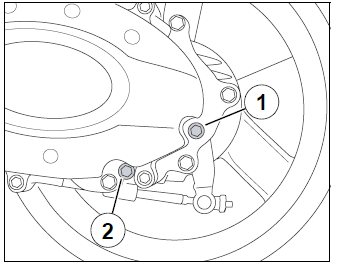

• Remove the relay box filler cap (1).
• Remove the drainage cap and its seal (2) and allow the oil to drip into a recipient.
• Insert the drain plug fitted with a new seal.

Tightening torque: 10 Nm.

• Pour the required quantity of oil corresponding to the manufacturer's standards into the filler hole.

Quantity: 0.1 l.

• Fit the filler cap.

Tightening torque: 10 Nm.
